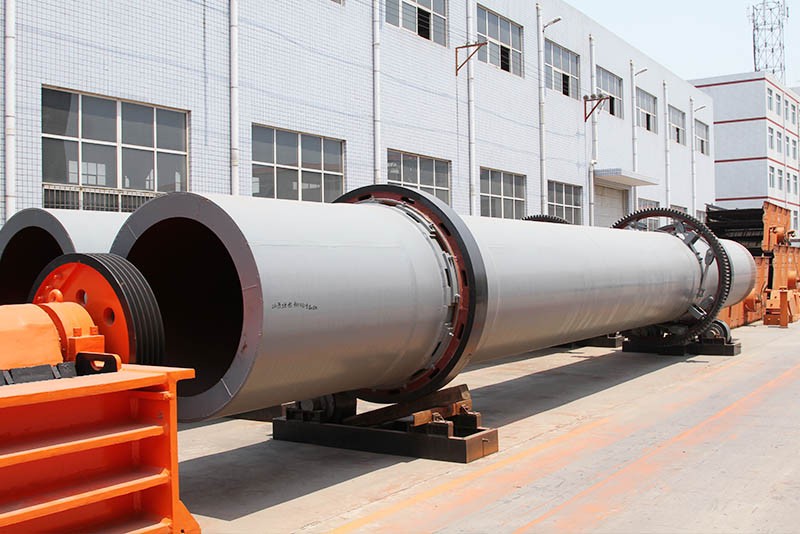

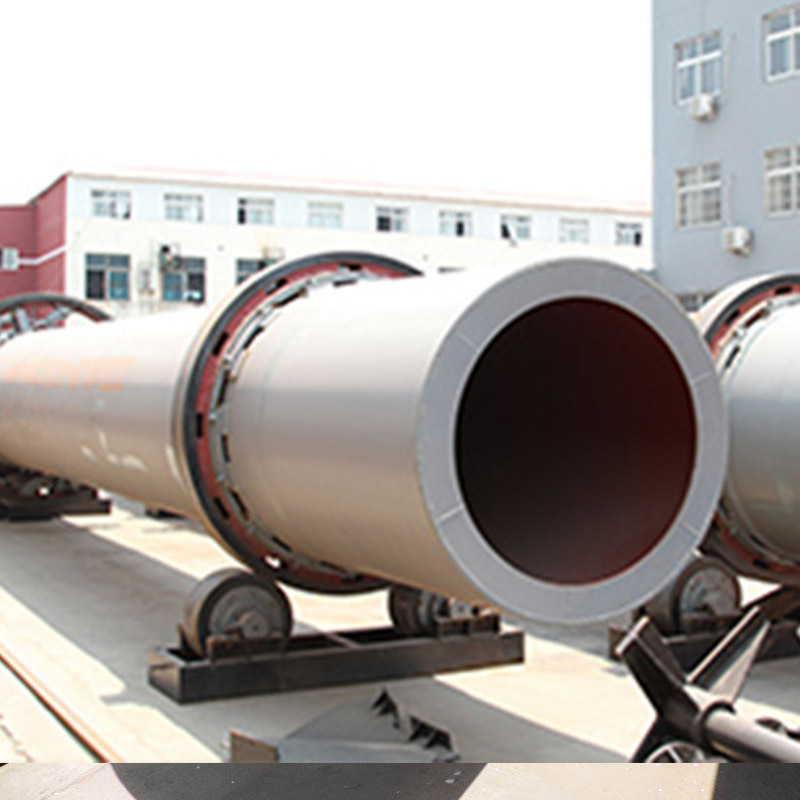

The fluorite dryer is widely used for fluorite drying. Electric engine and Diesel engine are optional.Capacity : from 1.9 t/h to 76 t/h.Click for full details.
Fluorite is a kind of mineral that contains more impurities. Natural fluorite is often impure, which cannot be directly used to produce optical lenses. Hence, fluorite is usually crushed and ground before processing and using.
Fluorite powder should be dried before further processing. Fluorite dryer belongs to a kind of mineral powder drying machine, which is mainly used to dry fluorite particle or fluorite powder. Fluorite dryer also can dry paste materials or materials with high moisture content.
Both ends f fluorite dryer are highly sealed, thus efficiently saving energy and protecting environment. Electricity consumption of fluorite dryer is just one third of similar products.
Fluorite dryer can also be used in material drying of cement, mine, building materials, chemical industry and other sectors, which has very wide range of application.
|
Spec./m
(Dia.×Length) |
Shell Cubage
(m³) |
Capacity
(t/h) |
Installation
Obliquity (%) |
Highest Inlet
Air Temperature (℃) |
Main Motor
(kw) |
Weight
(t) |
|
Φ1.2×8.0
|
9.0
|
1.9～2.4
|
3～5
|
700～800
|
7.5
|
9
|
|
Φ1.2×10
|
11.3
|
2.4～3.0
|
3～5
|
700～800
|
7.5
|
11
|
|
Φ1.5×12
|
21.2
|
4.5～5.7
|
3～5
|
700～800
|
15
|
18.5
|
|
Φ1.5×14
|
24.7
|
5.3～6.6
|
3～5
|
700～800
|
15
|
19.7
|
|
Φ1.5×15
|
26.5
|
5.7～7.1
|
3～5
|
700～800
|
15
|
20.5
|
|
Φ1.8×12
|
30.5
|
6.5～8.1
|
3～5
|
700～800
|
18.5
|
21.5
|
|
Φ1.8×14
|
35.6
|
7.6～9.5
|
3～5
|
700～800
|
18.5
|
23
|
|
Φ2.2×12
|
45.6
|
9.7～12.2
|
3～5
|
700～800
|
22
|
33.5
|
|
Φ2.2×14
|
53.2
|
11.4～14.2
|
3～5
|
700～800
|
22
|
36
|
|
Φ2.2×16
|
60.8
|
13.0～16.2
|
3～5
|
700～800
|
22
|
38
|
|
Φ2.4×14
|
63.3
|
13.5～16.9
|
3～5
|
700～800
|
37
|
45
|
|
Φ2.4×18
|
81.4
|
17.4～21.7
|
3～5
|
700～800
|
37
|
49
|
|
Φ2.4×20
|
90.4
|
19.3～24.1
|
3～5
|
700～800
|
45
|
54
|
|
Φ2.4×22
|
99.5
|
21.2～26.5
|
3～5
|
700～800
|
45
|
58
|
|
Φ2.6×24
|
127.4
|
27.2～34.0
|
3～5
|
700～800
|
55
|
73
|
|
Φ3.0×20
|
141.3
|
30.1～37.7
|
3～5
|
700～800
|
75
|
85
|
|
Φ3.0×25
|
176.6
|
37.7～47.1
|
3～5
|
700～800
|
75
|
95
|
|
Φ3.2×25
|
201
|
42.9～53.6
|
3～5
|
700～800
|
90
|
110
|
|
Φ3.6×28
|
285
|
60.8～76.0
|
3～5
|
700～800
|
160
|
135
|
Technical parameters of indirect heat dryer:
| Shell diameter ×shell Length Items |
Inside diameter of outer shell (mm) |
Inside diameter of inner shell (mm) |
Shell Length (m) |
Shell cubage (m³) |
Shell obliquity |
Lifting blade form |
Highest inlet air temperature (℃) |
Dimensions (m) |
| Φ1.5×15m | 1500 | 500 | 15 | 20.27 | 3-5% | Lifting form | 850 | 16.2×2.7×2.7 |
| Φ1.5×17m | 17 | 22.97 | 18.2×2.7×2.7 | |||||
| Φ1.5×19m | 19 | 25.68 | 20.0×2.9×2.9 | |||||
| Φ1.8×21m | 1800 | 650 | 21 | 35.91 | 3-5% | Lifting form | 850 | 22.5×2.7×2.7 |
| Φ1.8×23m | 23 | 39.33 | 24.5×2.9×2.9 | |||||
| Φ1.8×25m | 25 | 42.75 | 26.5×2.9×2.9 | |||||
| Φ2.2×21m | 2200 | 800 | 21 | 58.10 | 3-5% | Lifting form | 850 | ---- |
| Φ2.2×23m | 23 | 63.61 | ||||||
| Φ2.2×25m | 25 | 69.15 |
