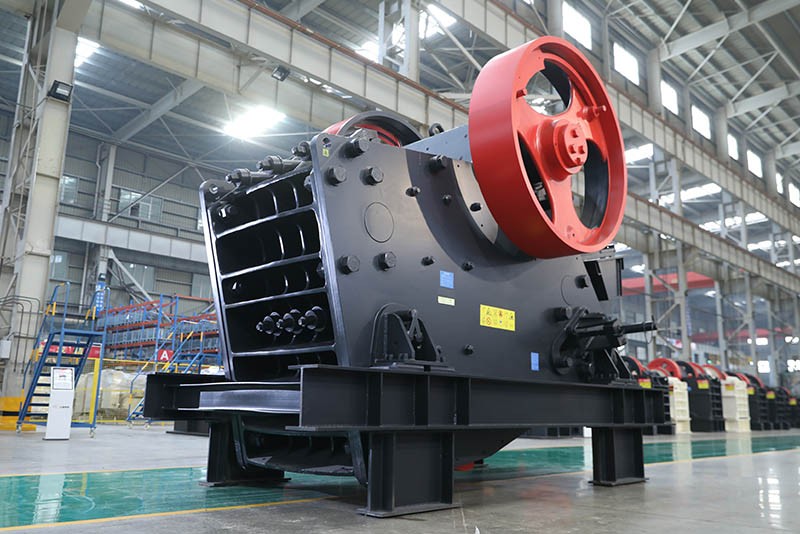

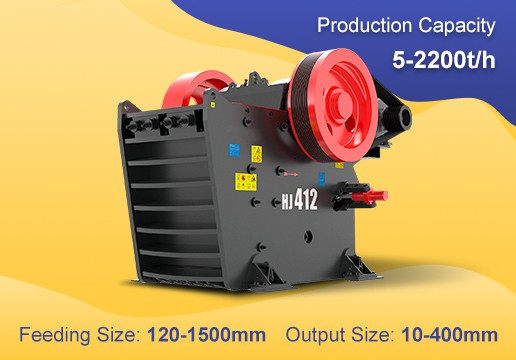

China Primary PE Stone Jaw Crusher Manufacturers

Jaw crusher is one of the best-selling ore crushers due to its high performance and competitive price. It is used for primary crushing of more than 200 kinds of ores with compressive strength not higher than 320MPa, such as river pebbles, calcite, granite, aggregate, quartz, concrete, dolomite, lapis lazuli, gold ore, iron ore, coal gangue, glass, limestone, construction waste and so on.

More than 200TYPE Applicable materials

When the jaw crusher is fed, the material is poured from the top inlet into the crushing chamber equipped with jaw teeth. As the jaw crusher operates, the movable jaw plate periodically reciprocates and moves up and down. The material is crushed, split and impacted between the two jaws to break it into smaller pieces.

Application Ranges:mineral mining, building material, bridges, high-ways, road, construction, chemical, metallurgy, coal mining and so on.

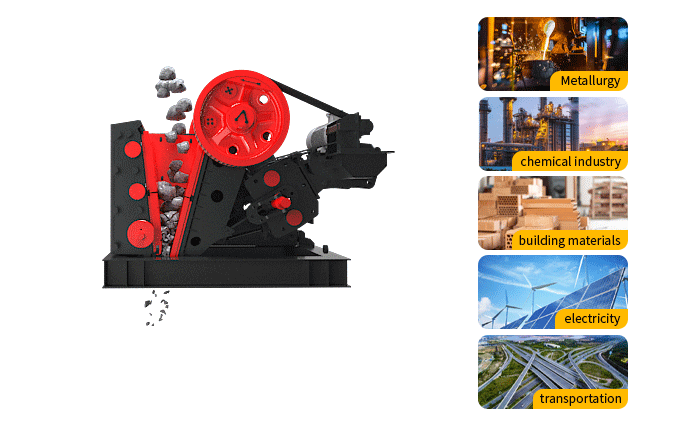

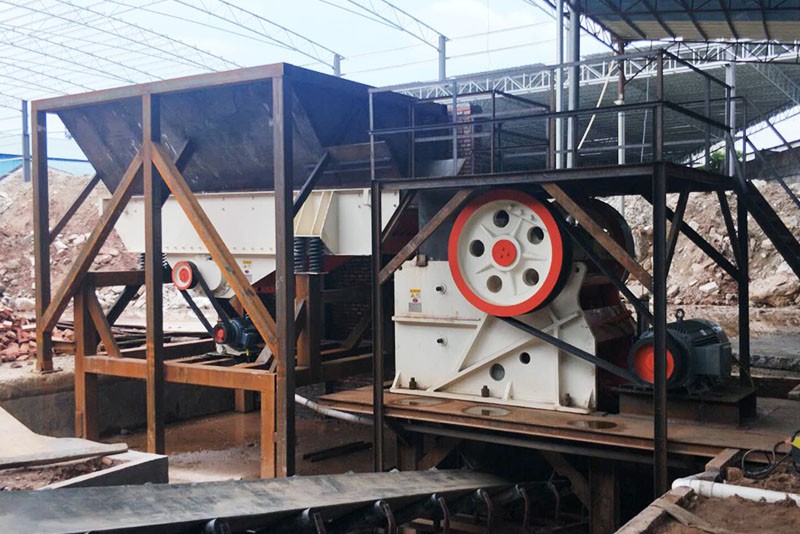

Jaw crusher operation

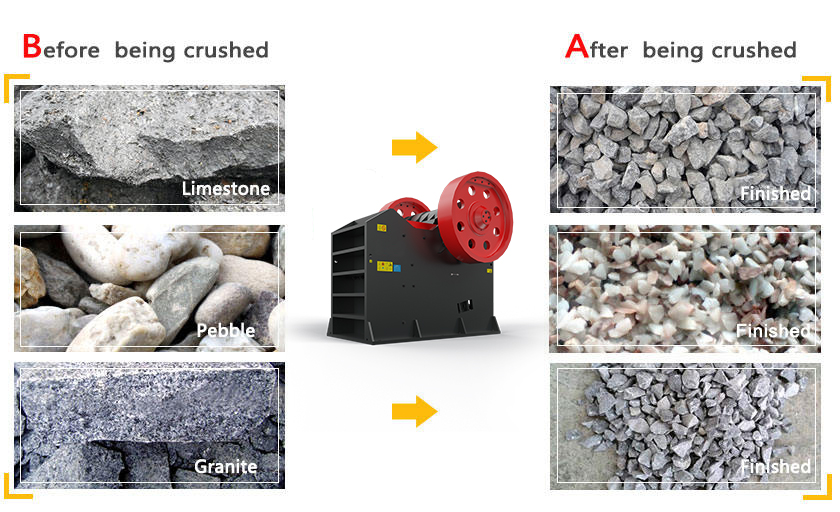

Jaw Crusher Application

CASE From Our Client

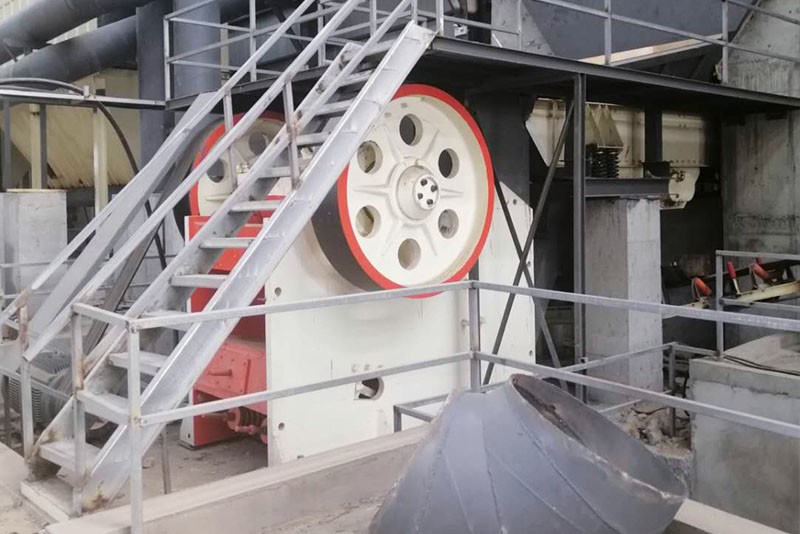

250TPH Granite Crushing Plant

Material: Granite

Capacity: 250TPH

Output Size: 0-5-10-31.5mm

Finished Product: High-quality aggregate and machine-made sand

Product Configuration: vibrating feeder, jaw crusher, cone crusher, vibrating screen, other auxiliary equipment

Throughout the construction process of the production line, from project design, civil construction, on-site installation and commissioning to rapid production, FTM's thoughtful and comprehensive service has been highly praised by the customer. Since the commissioning of the project, the production line has been running stably and the output has exceeded expectations, so the customer is very satisfied. In the future, we will continue to strive to provide more efficient, environmentally friendly and comprehensive services to our customers.

250TPH Granite Crushing Plant

Types of Jaw Crusher

Jaw crushers can be classified into four models, namelyPE jaw crusher, PEX jaw crusher, HD jaw crusher and CJ jaw crusher and mobile jaw crusher according to Different technologies and configurations. Different models with different price. The pe jaw crusher price is lower than other jaw crusher with same configuration. But low price does not mean cost-effective, compared with the other three models, CJ jaw crushers with fewer spare parts, wedge block discharge adjustment, light-weight toggle plate, integrated motor seat and steel base enjoy the most cost-effective. PEX jaw crusher as second broken equipment is more inexpensive than other second crushing machine such as impact crusher and cone crusher. HD jaw crusher is cheaper than CJ jaw crusher and it is more efficient than PE jaw crusher. Mobility is the most significant characteristic and advantage of mobile jaw crushers. And the mobile jaw crusher price is highest because if was equipped with feeders and other related equipment.

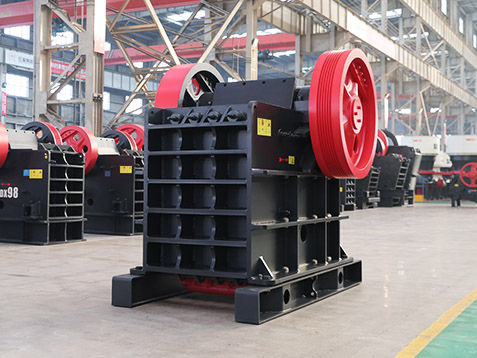

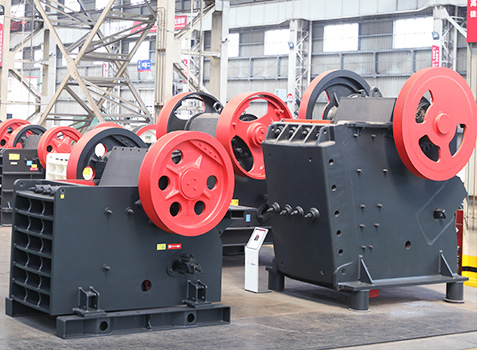

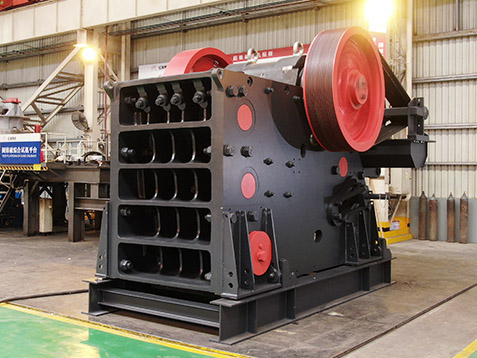

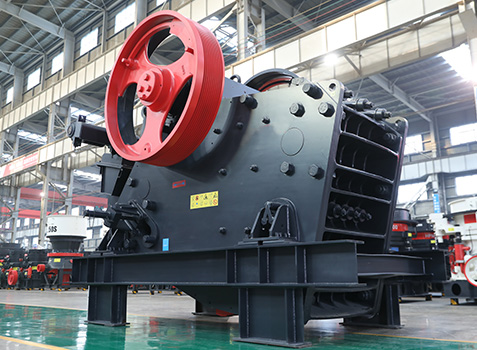

PE Jaw Crusher	PEX Jaw Crusher

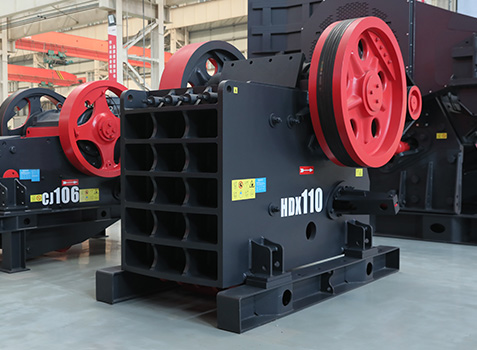

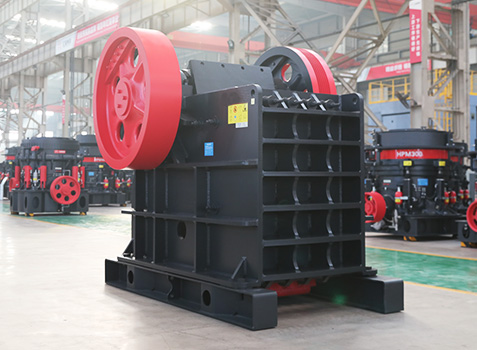

HD Jaw Crusher	CJ Jaw Crusher

According to size of feed port, the jaw crushers can be classified into small (mini) jaw crusher, middle-sized jaw crusher, Large jaw crusher; the smallest feed port of jaw crusher is 200*300 mm (pe) and the largest feed port is 1600 mm*2100 mm and its production capacity can up to 1300-2200t/h.

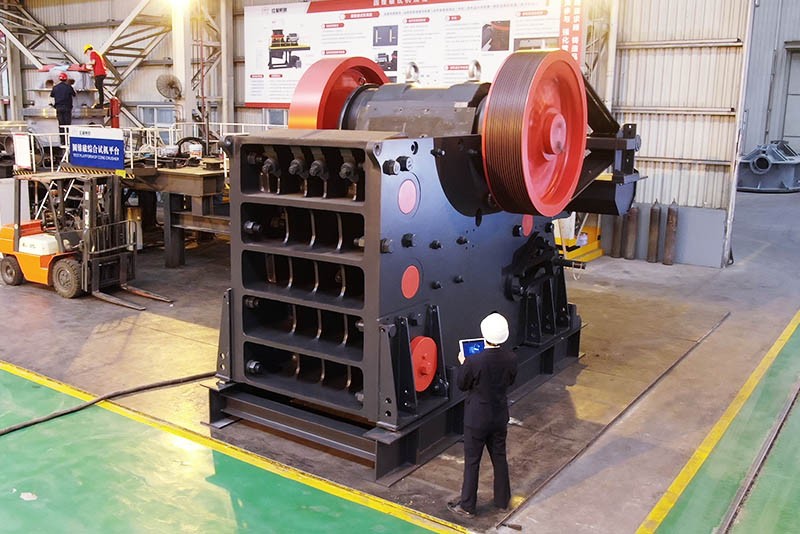

Large Jaw Crusher	Small Jaw Crusher

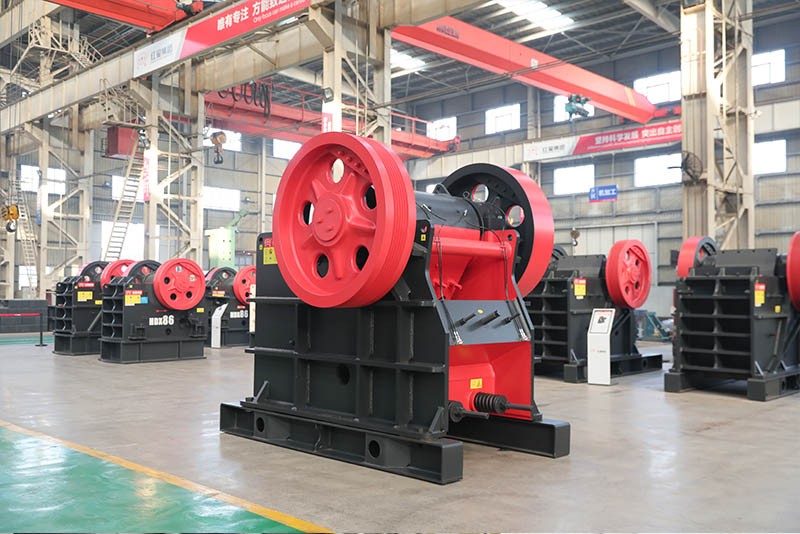

Jaw Crusher Manufacturers

As jaw crusher is the oldest crushing equipment, there are thousands of manufacturers around the world. Finding out the right one from numerous jaw crusher manufacturers is still a significant challenge in a number of jaw crusher users. Actually our users need the right one not the expensive one. Therefore when we choose the manufacturers, we should pay attention to many aspects such as: production quality control, manufacturers strength, after-sales service, spare parts supply, warranty period, operation training and so on.

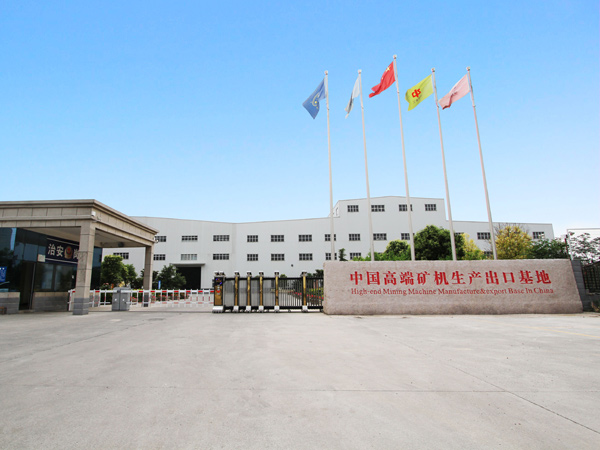

Jaw Crusher Manufacturers

Jaw Crusher Manufacturers

Henan Fote Heavy Machinery Co,.ltd as one of the professional China jaw crusher manufacturers which is specialized in production of various stone crushers, such as jaw crushers, impact crushers, cone crushers, hammer crushers, roller crushers and other kinds of crushers. Moreover, IT is a high-tech enterprises which has a 3,000,000 ㎡ production workshop integrates research and development, production, sales and service as a whole. Now we FTM have three large production base Hongxing Machinery, Zhongde Heavy Industry and Volt Heavy Machinery And our customers of jaw crushers are located around the world, such as Saudi Arabia, Lebanon, Kuwait , Indonesia, Thailand, Malaysia, Philippines, Mexico, Brazil and so on .

Model	Feed opening (mm）	Max.feeding size (mm)	Adjusting range of discharge opening (mm)	Processing capacity (t/h)	Rotation speed of eccentric shaft (r/min)	Motor power (kw)	Total weight (t)	Dimensions （L×W×H） (mm)
PE-150×250	150×250	125	10-40	1-3	250	4P 5.5	0.8	720×660×850
PE-200×300	200×300	180	15-50	2-6	260	4P 7.5	1.2	910×750×990
PE-200×350	200×350	180	18-70	3-10	260	4P 11	1.5	1000×870×990
PE-250×400	250×400	210	20-60	5-20	300	6P 15	2.8	1300×1090×1270
PE-400×600	400×600	340	40-100	16-60	275	6P 30	7	1730×1730×1630
PE-500×750	500×750	425	50-100	40-110	275	6P 55	12	1980×2080×1870
PE-600×750	600×750	500	150-200	80-240	275	6P 55	15.8	2070×2000×1920
PE-600×900	600×900	500	65-160	50-160	250	6P 55	17	2190×2206×2300
PE-750×1060	750×1060	630	80-140	110-320	250	8P 110	29	2660×2430×2800
PE-800×1060	800×1060	640	130-190	130-330	250	8P 110	29.8	2710×2430×2800
PE-830×1060	830×1060	650	160-220	150-336	250	8P 110	30.7	2740×2430×2800
PE-870×1060	870×1060	660	200-260	190-336	250	8P 110	31.5	2810×2430×2800
PE-900×1060	900×1060	685	230-290	230-390	250	8P 110	33	2870×2420×2940
PE-900×1200	900×1200	750	95-165	220-450	200	8P 110	52	3380×2870×3330
PE-1000×1200	1000×1200	850	195-265	315-500	200	8P 110	55	3480×2876×3330
PE-1200×1500	1200×1500	1020	150-350	400-800	180	6P 160-220	100.9	4200×3300×3500
PE-1500×1800	1500×1800	1200	220-350	500-1000	180	8P 280-355	139	5160×3660×4248
PE-1600×2100	1600×2100	1500	300-400	1300-2200	160	8P 350-380	150.6	6210×4013×4716
PEX-150×750	150×750	120	18-48	8-25	320	4P 15	3.8	1200×1530×1060
PEX-250×750	250×750	210	25-60	13-35	330	6P 22	5.5	1380×1750×1540
PEX-250×1000	250×1000	210	25-60	16-52	330	6P 30	7	1560×1950×1390
PEX-250×1200	250×1200	210	25-60	20-61	330	6P 37	9.7	2140×1660×1500
PEX-300×1300	300×1300	250	20-90	16-105	300	6P 55	15.6	2720×1950×1600
