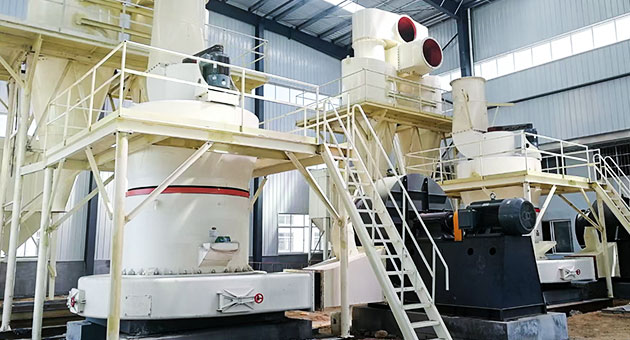

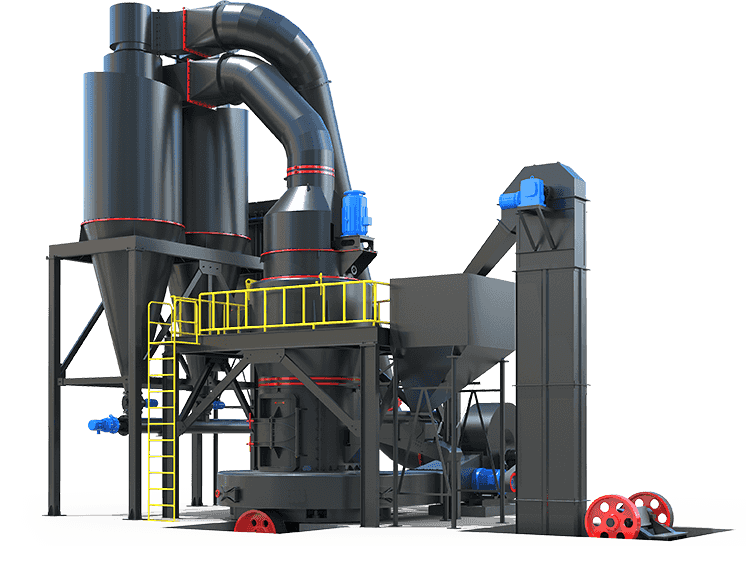

Powder Production Line：Electromagnetic vibrating feeder—Jaw Crusher/Hammer Crusher—Bucket Elevator—Raymond Mill—Dust Collector
Powder Production Line：Electromagnetic vibrating feeder—Jaw Crusher/Hammer Crusher—Bucket Elevator—HGM Ultrafine Grinding Mill—Dust Collector

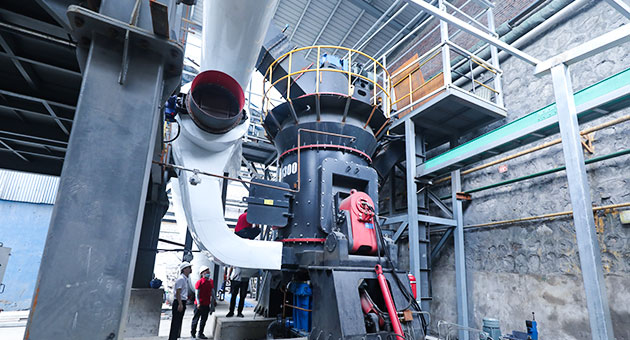

Powder Production Line：Electromagnetic vibrating feeder—Jaw Crusher/Hammer Crusher—Bucket Elevator—Vertical Roller Mill—Dust Collector

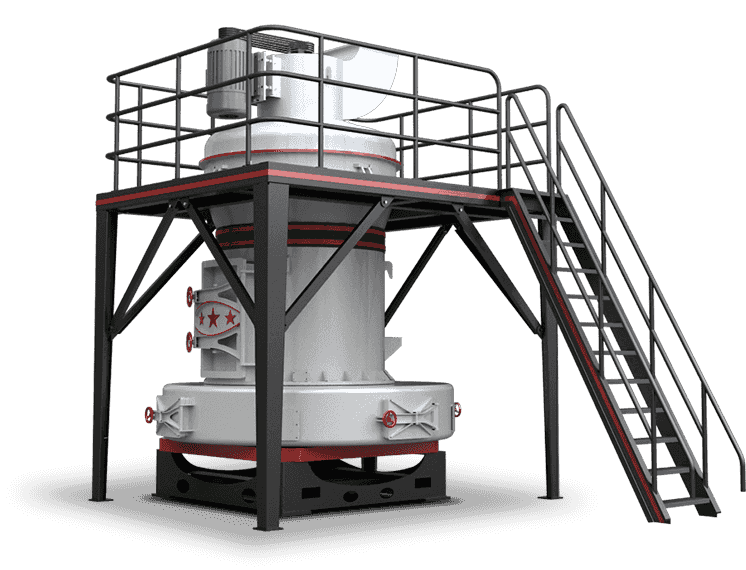

Raymond
Mill
HGM Ultrafine
Grinding Mill

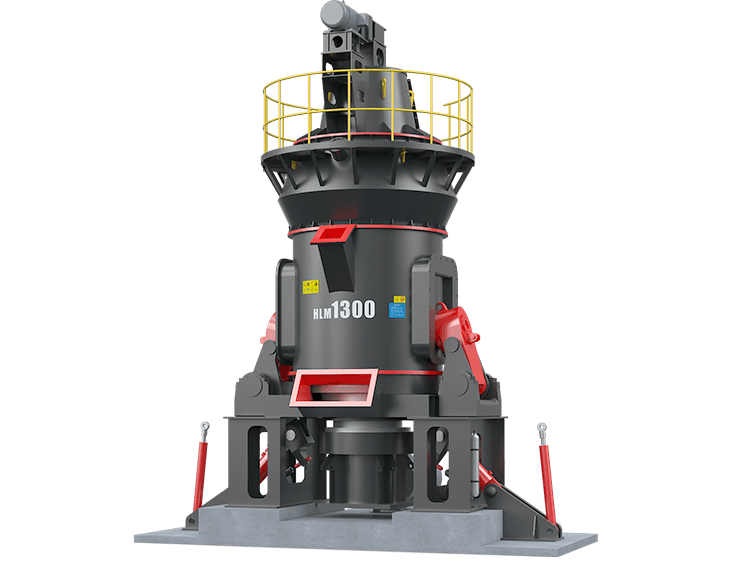

Vertical Roller
Mill
Production Capacity: 1-40 t/h
Output Size: 80-325 mesh
Production Capacity: 0.4-40 t/h
Output Size: 65-800 mesh
Production Capacity: 10-320 t/h
Output Size: 20-400 mesh
Powder Production Line：Electromagnetic vibrating feeder—Jaw Crusher/Hammer Crusher—Bucket Elevator—Raymond Mill—Dust Collector
Powder Production Line：Electromagnetic vibrating feeder—Jaw Crusher/Hammer Crusher—Bucket Elevator—HGM Ultrafine Grinding Mill—Dust Collector
Powder Production Line：Electromagnetic vibrating feeder—Jaw Crusher/Hammer Crusher—Bucket Elevator—Vertical Roller Mill—Dust Collector
Applied fields：Grinding of metallurgy, building materials, chemical industry and other mineral materials
24/7 online
Free customize solutions
Fast dispatching for goods
Full technical support
365 days after sales online
Project tracking regularly
Applied material：Non-Metalic ore, like limestone, gypsum, dolomite, potassium feldspar, barite, talc, diabase, quartzite, bentonite, etc.
It can process non-flammable and non-explosive mineral materials with Moh's hardness below 9.3 and humidity below 7%, and the fineness of the finished products can be adjusted from 0.18mm to 0.01mm (80 mesh to 1250 mesh), and some of them can reach more than 2000 mesh.
Chat Online

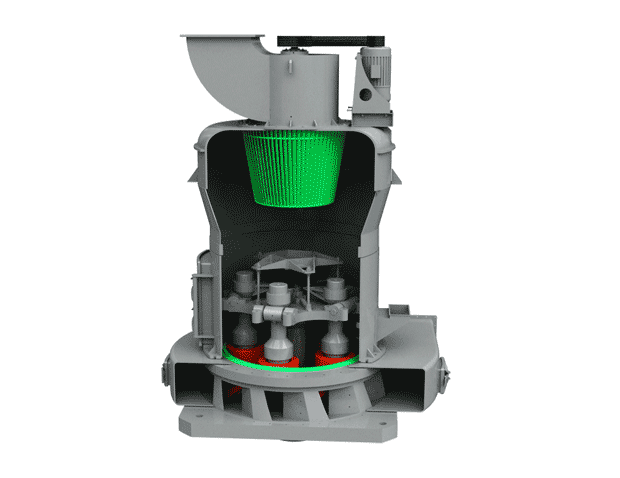

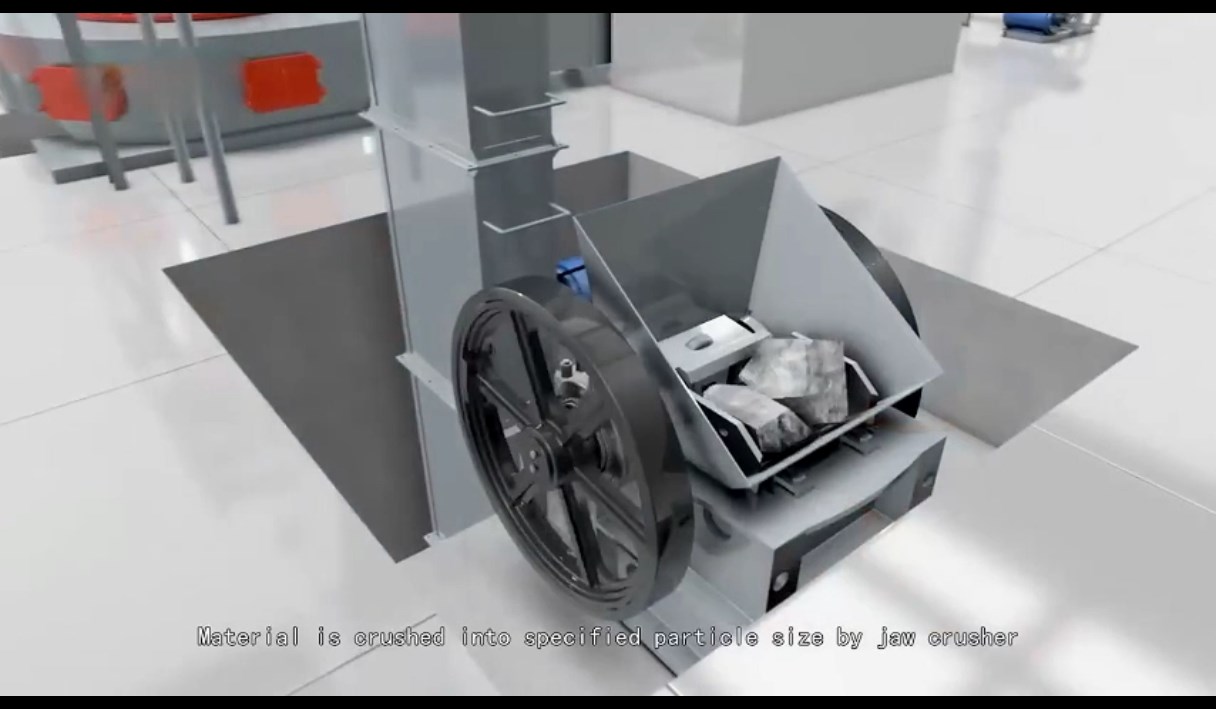

After the large stone material is crushed into small particles, it is fed into the main machine from the side feed hopper. The material entering the grinding room is scooped up by the blade and thrown to the roller ring, through the grinding rollers to achieve the role of crushing and grinding. The powder in the grinding room is blown into the analyzer for sorting.the fineness does not meet the powder still falls into the host to regrind, the qualified powder with the wind flow into the large cyclone collector, collected and discharged through the discharge pipe that is the finished product.
Chat Online
Chat Online
Our customers are located in 160 countries and regions
Chat Online
We are a building materials factory, mainly producing gypsum powder, so we have high requirements on the fineness of the finished powder, FTM's Raymond mill can perfectly meet our requirements, and we will continue to cooperate with them!
Raw material: Gypsum
Feeding size: ≤15 mm
Finished particle size: 80 mesh-340 mesh (0.173 mm-0.044 mm)
Purchasing equipment: PE-250 × 400 jaw crusher, 4525 Raymond mill, vibrating screen, conveyor, dust collector
We've been working with FTM for three years.The equipment has high grinding efficiency, modern powder selection technology, reliable operation, and better automatic control system.
Raw material: Barite
Feeding size: <30 mm
Output size: 300 mesh
| Model | 4525 | 4119 |
| Feeding Size(mm) | ≤30 | ≤25 |
| Output Size(mm) | 0.173-0.044 | 0.173-0.044 |
| Shift Output of Different Material Fineness(t) | 16-176 | 8-78 |
| Rotation Speed of Central Shaft(r/min) | 82 | 105 |
| Ring Diameter(mm) | 1770 | 1400 |
| Roller Diameter(mm) | 450 | 410 |
| Roller Height(mm) | 250 | 190 |
| Main Motor(kw) | Y315M-4-132 | Y280S-4-75 |
| Fan Motor | Y315M-4-132 | Y280S-4-75 |
| Analyzer Motor | YCT250-4A-18.5 | YCT200-4B-7.5 |
| Model | 4525 | 4119 |
| Feeding Size(mm) | ≤30 | ≤25 |
| Output Size(mm) | 0.173-0.044 | 0.173-0.044 |
| Shift Output of Different Material Fineness(t) | 16-176 | 8-78 |
| Rotation Speed of Central Shaft(r/min) | 82 | 105 |
| Ring Diameter(mm) | 1770 | 1400 |
| Roller Diameter(mm) | 450 | 410 |
| Roller Height(mm) | 250 | 190 |
| Main Motor(kw) | Y315M-4-132 | Y280S-4-75 |
| Fan Motor | Y315M-4-132 | Y280S-4-75 |
| Analyzer Motor | YCT250-4A-18.5 | YCT200-4B-7.5 |
| Model | HGM88 | HGM95 | HGM 100 | HGM120 | HGM130 | HGM138 | HGM160 | HGM175 | HGM190 |
| Feeding size(mm) | <20 | <25 | <25 | <25 | <25 | <25 | <30 | <35 | <40 |
| Finished product size(mm) | 0.25-0.015 | 0.25-0.015 | 0.25-0.015 | 0.25-0.015 | 0.25-0.038 | 0.25-0.038 | 0.25-0.038 | 0.25-0.038 | 0.25-0.038 |
| Processing capacity(t/h) | 0.4-5 | 0.6-7 | 0.8-10 | 1.2-15 | 1.6-21 | 2-25 | 2.7-28 | 3-35 | 5-40 |
| Central shaft rotate speed(r.min) | 167 | 150 | 142 | 136 | 105 | 92.5 | 82 | 75 | 74 |
| Diameter of pulverizing ring(mm) | 908 | 1006 | 1075 | 1280 | 1400 | 1510 | 1770 | 1900 | 2040 |
| Number Of pulverizing roller | 3 | 3 | 3 | 3 | 4 | 4 | 5 | 5 | 4 |
| Main motor power(kw) | 22 | 30 | 45 | 55 | 75 | 90 | 132 | 185 | 280 |
| Fan motor power(kw) | 22 | 30 | 45 | 75 | 90 | 110 | 160 | 200 | 280 |
| Analyzer motor power(kw) | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 22/30 | 30/45 | 55 |
| Model | Feeding size (mm) |
Processing capacity (t/h) |
| HGM88 | <20 | 0.4-5 |
| HGM95 | <25 | 0.6-7 |
| HGM 100 | <25 | 0.8-10 |
| HGM120 | <25 | 1.2-15 |
| HGM130 | <25 | 1.6-21 |
| HGM138 | <25 | 2-25 |
| HGM160 | <30 | 2.7-28 |
| HGM175 | <35 | 3-35 |
| HGM190 | <40 | 5-40 |
| Specifications | Capacity(t/h) | The finished product fineness | The raw material moisture | The finished product moisture | Main motor power(kW) |
| HLM1300K | 10-40 | 0.84-0.37mm (20-400 mesh) | ≤15% | ≤1% | 200 |
| HLM1500K | 13-50 | 280 | |||
| HLM1700K | 18-70 | 400 | |||
| HLM1900K | 20-85 | 500 | |||
| HLM2200K | 35-135 | 800-900 | |||
| HLM2400K | 40-160 | 900-1120 | |||
| HLM2800K | 50-200 | 1120-1250 | |||
| HLM3400K | 70-260 | 1800-2000 | |||
| HLM3700K | 90-320 | 2500-2800 |
| Specifications | Capacity(t/h) | Main motor power(kW) |
| HLM1300K | 10-40 | 200 |
| HLM1500K | 13-50 | 280 |
| HLM1700K | 18-70 | 400 |
| HLM1900K | 20-85 | 500 |
| HLM2200K | 35-135 | 800-900 |
| HLM2400K | 40-160 | 900-1120 |
| HLM2800K | 50-200 | 1120-1250 |
| HLM3400K | 70-260 | 1800-2000 |
| HLM3700K | 90-320 | 2500-2800 |
